Forged Fittings are high-strength piping components used to connect, redirect, and control pipe systems. Available in various sizes, pressure classes, and materials, they provide reliable performance in oil & gas, chemical, petrochemical, power, and industrial applications.
| Forged Fittings Specifications: | ASTM A182 / ASME SA182 |
|---|---|
| Forged Fittings Size: | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Forged Fittings Dimensions: | ASME 16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799 |
| Forged Fittings Types: | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A182 Forged Fittings Pressure Rating: |
Threaded End – 2000 lb / 3000 lb / 6000 lb Socket-weld End – 3000 lb / 6000 lb / 9000 lb |
| Forged Fittings Thread: | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates: |
EN 10204 / 3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc. |
| Forged Fittings Origin & Mills: | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized Manufacturer Of: | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Forged Pipe Fittings, Socket Weld & Threaded Fittings, Equal Tees, Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates: |
MTC as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103 and NACE MR0175 |
| ASTM A182 / A182M: |
Forged fittings, valves, and parts for high-temperature service. Standard Specification for Wrought Austenitic Stainless Steel Forged Fittings |
|---|---|
| BS21: | Threading |
| BS3799: | Specification for Steel Pipe Fittings, Screwed and Socket-Welding for the Petroleum Industry |
| ANSI B16.11: |
Forged Steel Fittings, Socket-Welding and Threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1: | Pipe Threads, General Purpose (Inch) |
| ISO 4144: | Stainless Steel Fittings Threaded to ISO 7-1 |
| MSS SP-95: | Swage(d) Nipples and Bull Plugs |
| Products | Products | Size & Pressure Rating |
|---|---|---|
| ASTM A182 SS 90° Elbow | ASTM A182 SS 45° Elbow |
Sizes 1/8″–4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 SS Forged Tee | ASTM A182 SS Union | |
| ASTM A182 SS Forged Cross | ASTM A182 SS Insert | |
| ASTM A182 SS Screwed Bushing | ASTM A182 SS Threaded Pipe Nipple | |
| ASTM A182 SS Forged Socket Weld Cap | ASTM A182 SS Screwed Coupling | |
| ASTM A182 SS Forged Plug | ASTM A182 SS Street Elbow |
| Stainless Steel: |
ASTM A-182, 3000 lbs / 6000 lbs / 9000 lbs ASTM A-182 TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L |
|---|---|
| Titanium: | ASTM / ASME SB564 |
| High Nickel Alloys: |
ASTM B564 / B335 / B649 / B462 / B151 Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel |

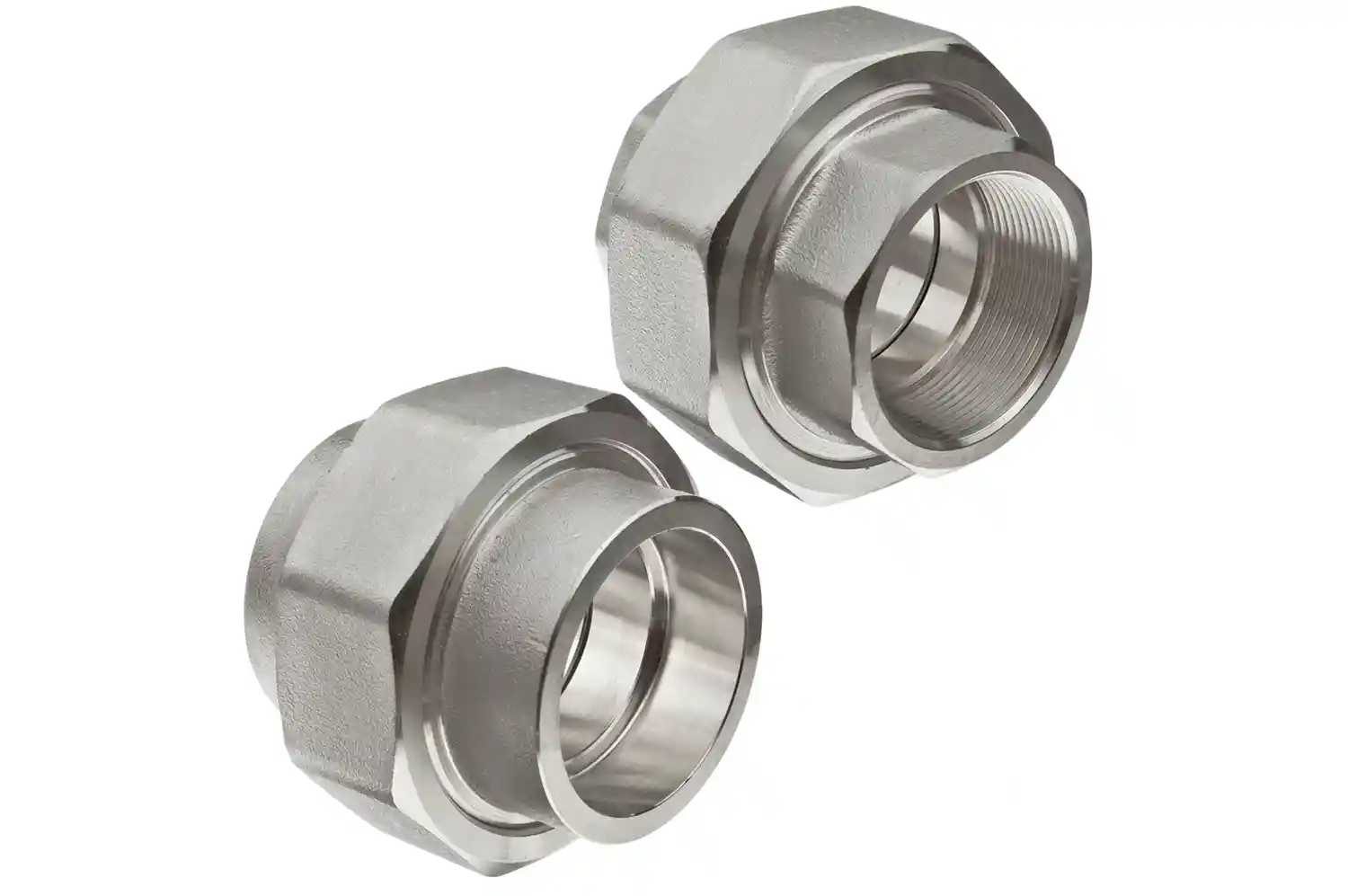

Stainless Steel Forged Fittings are high-strength components used for connecting and directing piping systems. They offer excellent corrosion resistance, durability, and reliable performance in chemical, petrochemical, oil & gas, pharmaceutical, and industrial applications.

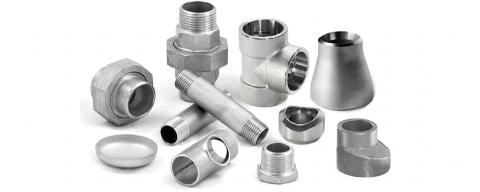

Nickel Alloy Forged Fittings offer excellent strength, corrosion resistance, and durability in demanding environments.

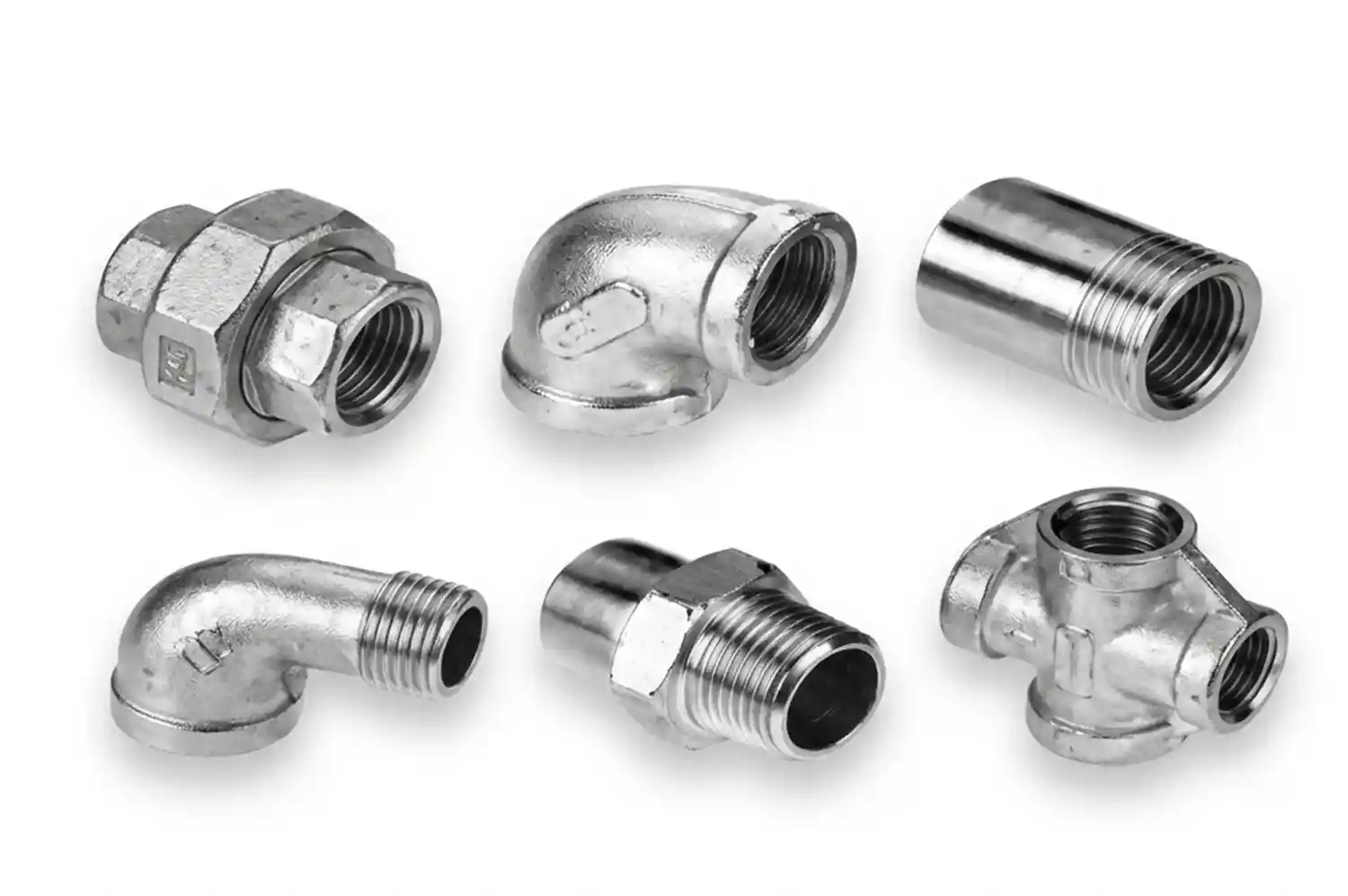

Duplex and Super Duplex Forged Fittings provide excellent strength, corrosion resistance, and durability in demanding environments. They are widely used in oil & gas, chemical, petrochemical, marine, and high-pressure applications.

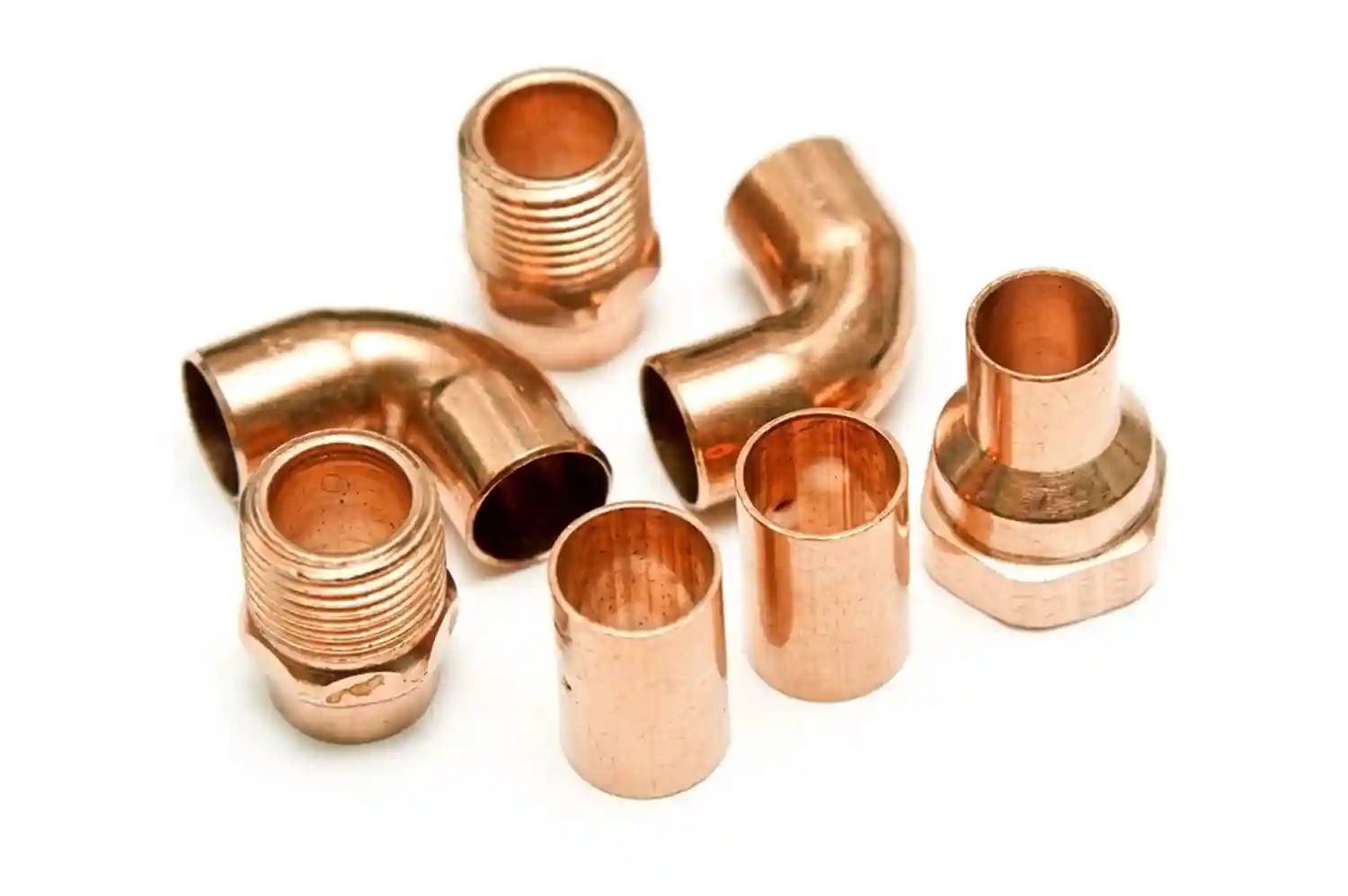

Copper Nickel Forged Fittings offer excellent corrosion resistance, strength, and durability, especially in marine and seawater environments.
