Buttweld Fittings are durable piping components used to connect, redirect, and modify piping systems through welded joints. They provide strong, leak-resistant connections and are widely used in oil & gas, chemical, petrochemical, power, and industrial applications.
| Fasteners Specifications: | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners Size: |
Bolt / Screw Size: M3 - M56 | 3/6" to 2" | Custom Sizes Nuts Size: M3 - M56 | 3/6" to 2" | Custom Sizes Washers Size: M3 - M56 | 3/6" to 2" | Custom Sizes Machine Screws Size: M1.6 - M12 Self Tapping Screw Size: No. 2 - No. 14 |
| Fasteners Length: | 3 mm to 200 mm |
| Studs, Bolts, Threads: | UNF, BSW, BSF, METRIC, UNC, or as required |
| Steel Fasteners: |
DIN: DIN 934, DIN 931, DIN 970, DIN 933 UTS: UNEF, NPT, UNC, UNS, UNF, NPTF ISO: JIS Standards, ISO 4033, ISO 4032 ANSI: American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M ASME B16.5 SS Stud Bolt Length ANSI B 18.2.4 2M ASME B18.2.2 SS Hex Nuts |
| Form of Fasteners: | Hex, Threading, Square, Round as per Gauge, etc. |
| Raw Materials Source: | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration: | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification: | Dual Certified as per ASTM & ASME Codes |
| Dimensions: | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads: | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically. |
| Test Certificate of SS Bolting: | As per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications: | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production Process: | M24-M100: Hot Forging, M2-M24: Cold Forging, Custom-Made Connecting Element Machining and CNC |
| Head Drive of Bolts: | Six-Lobe, Phillips, Phillips/Slot, Slotted, etc. |
| Packing of Fasteners: | In Bulk: Carton, Pallet, Small Boxes / Carton / Pallet, or as per customer request |
| Surface Coating: |
PTFE Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing: |
Stainless Steel: Self-Colour, Passivated, Bright Zinc Plated (BZP),
Hot Dip Galvanised (HDG), Stainless Steel, Sherardized,
DACROMET Geometry, Mechanically Applied Coating, Dacroment,
Nickel Plated, Anodizing, Plated Zinc-Nickel Zinc: Blue, Black, Yellow, White Black Oxide |
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi-Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
Stainless Steel and Duplex Steel Buttweld Fittings provide excellent strength, corrosion resistance, and durability for demanding piping systems. They are widely used in oil & gas, chemical, petrochemical, pharmaceutical, marine, and industrial applications.

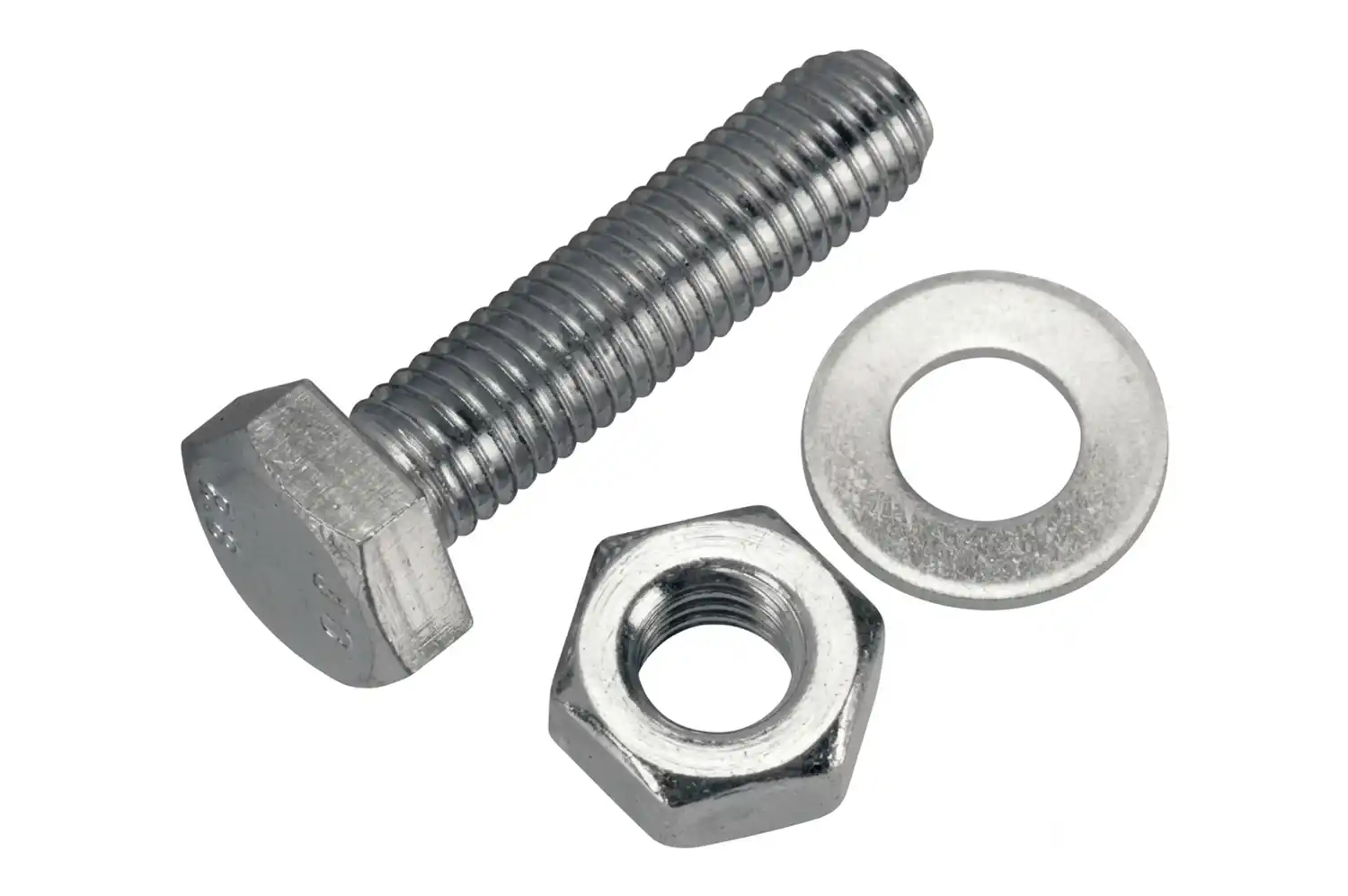

Hastelloy Fasteners offer excellent corrosion resistance, high strength, and durability in aggressive chemical and high-temperature environments.

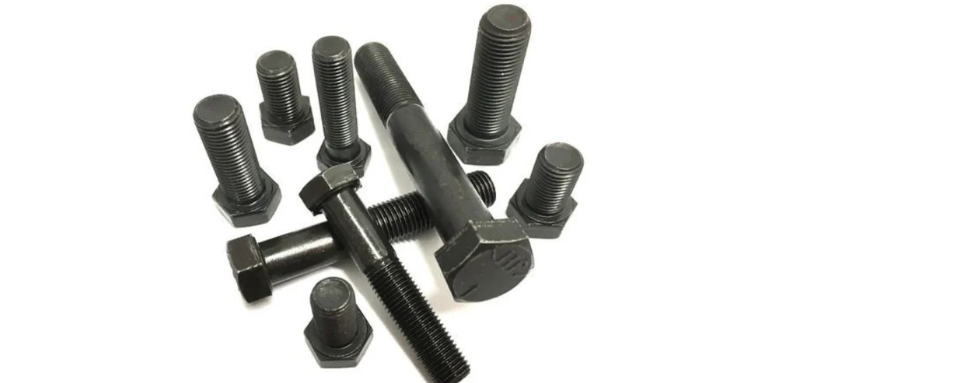

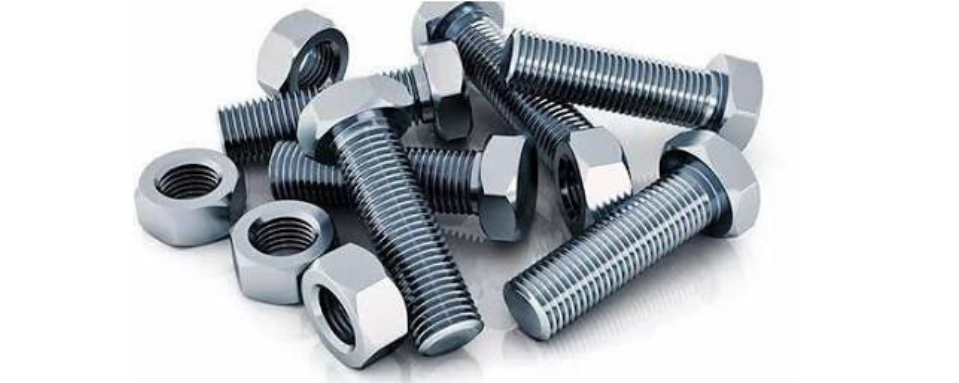

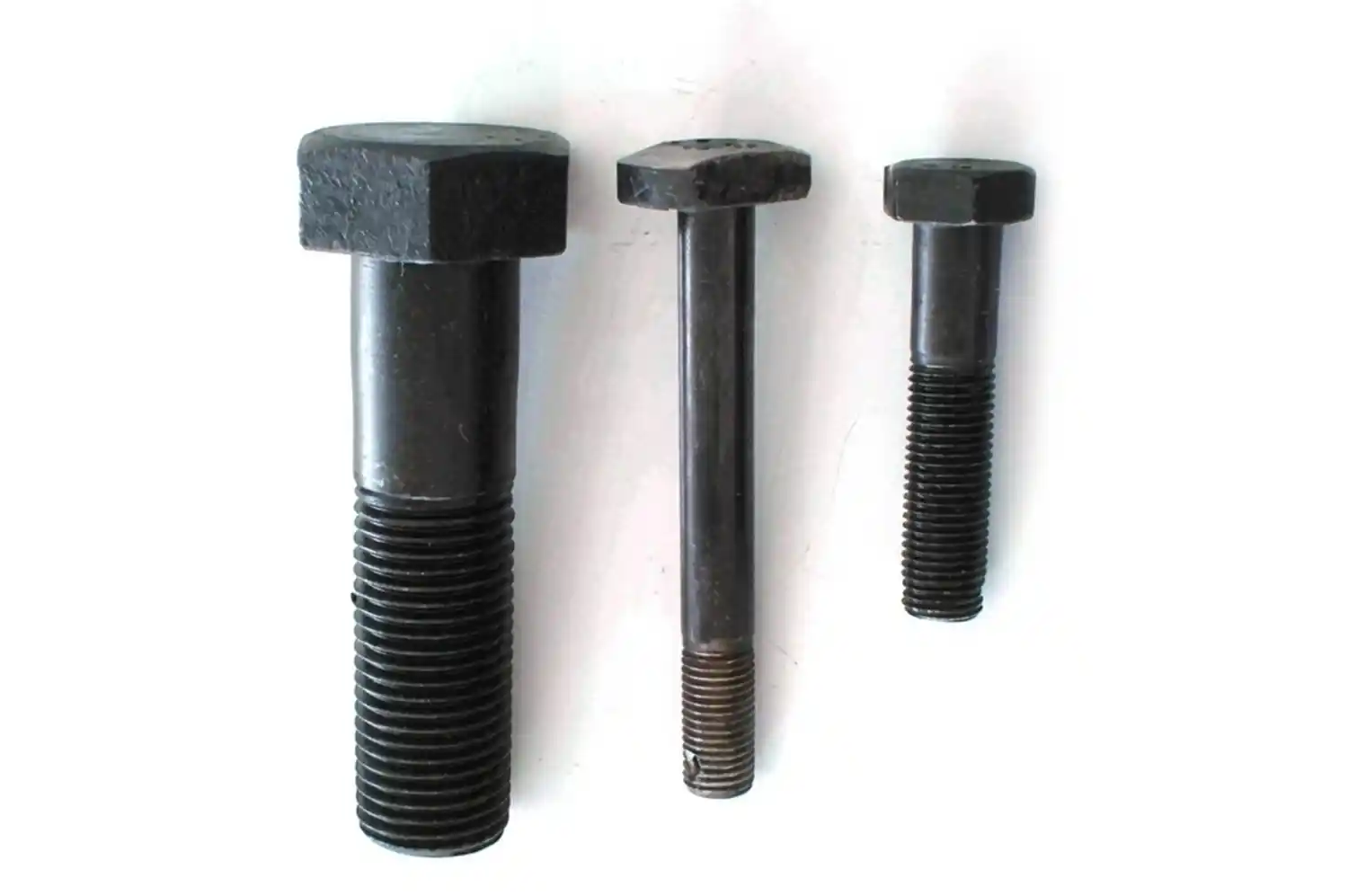

Carbon and Alloy Steel Fasteners provide excellent strength, durability, and reliable performance in high-pressure and high-temperature industrial applications.

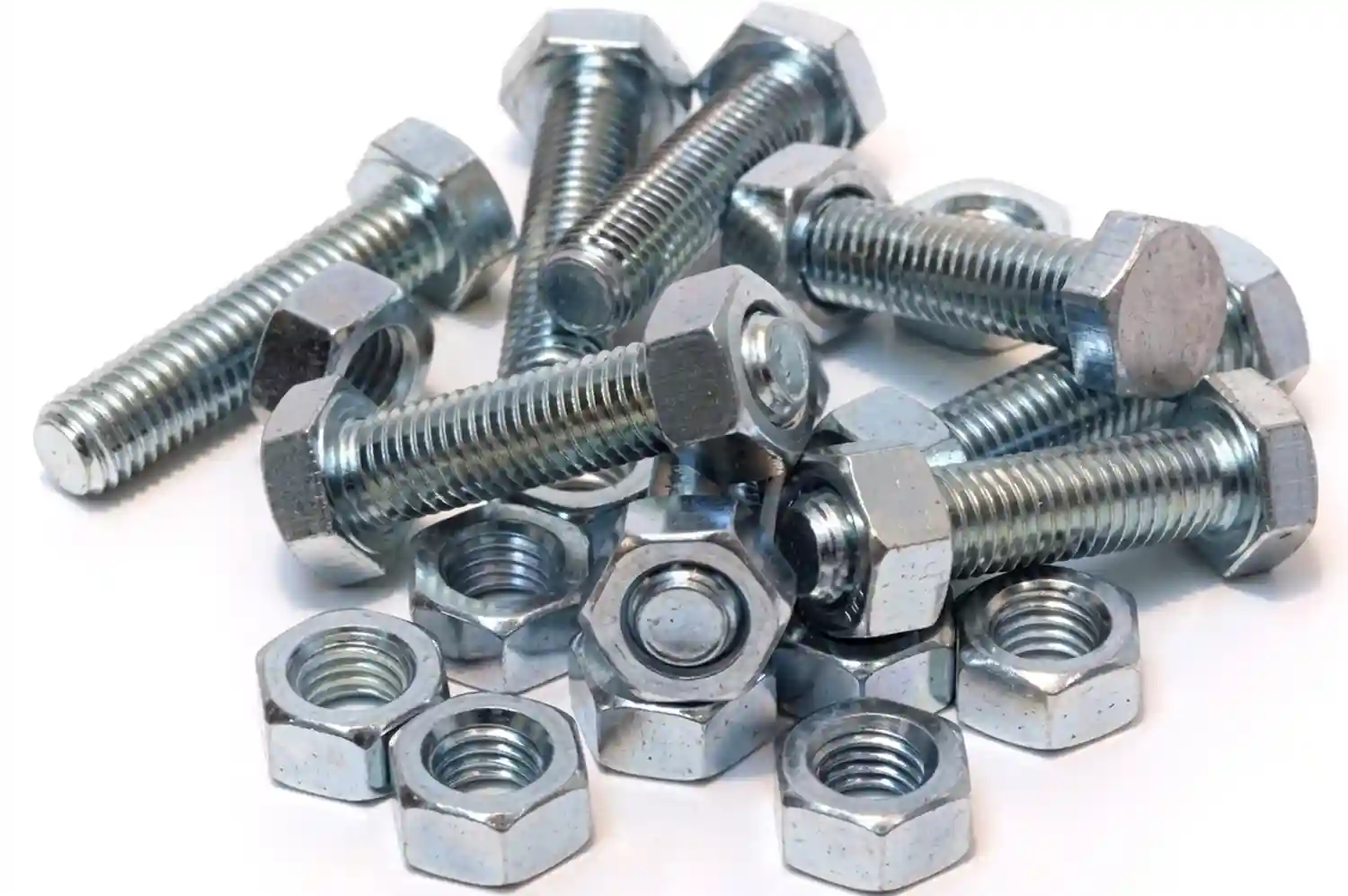

Inconel Fasteners offer excellent strength, corrosion resistance, and high-temperature performance in demanding industrial and high-performance applications.

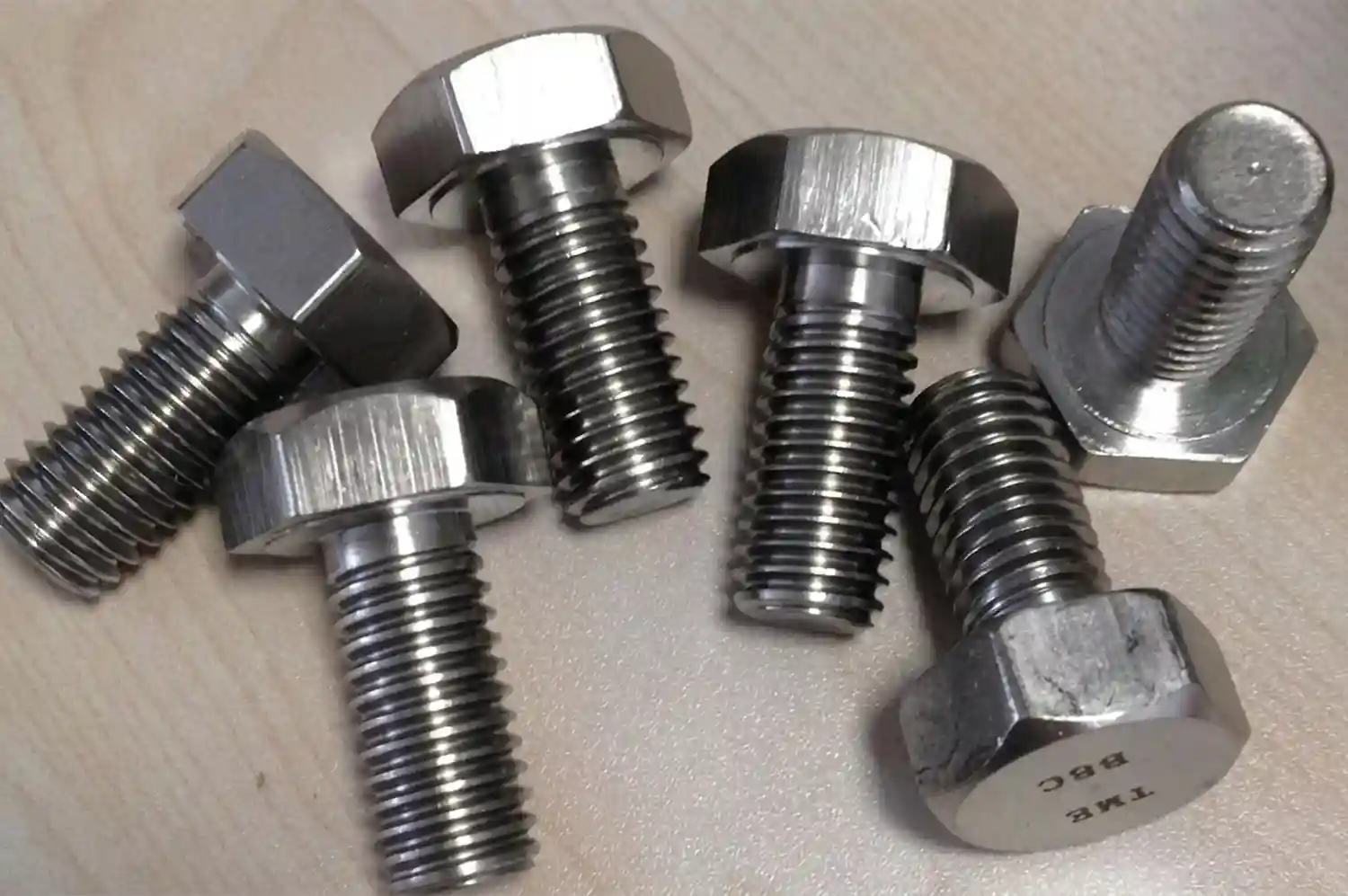

Incoloy Fasteners offer excellent strength, corrosion resistance, and high-temperature performance in demanding industrial and high-performance applications.

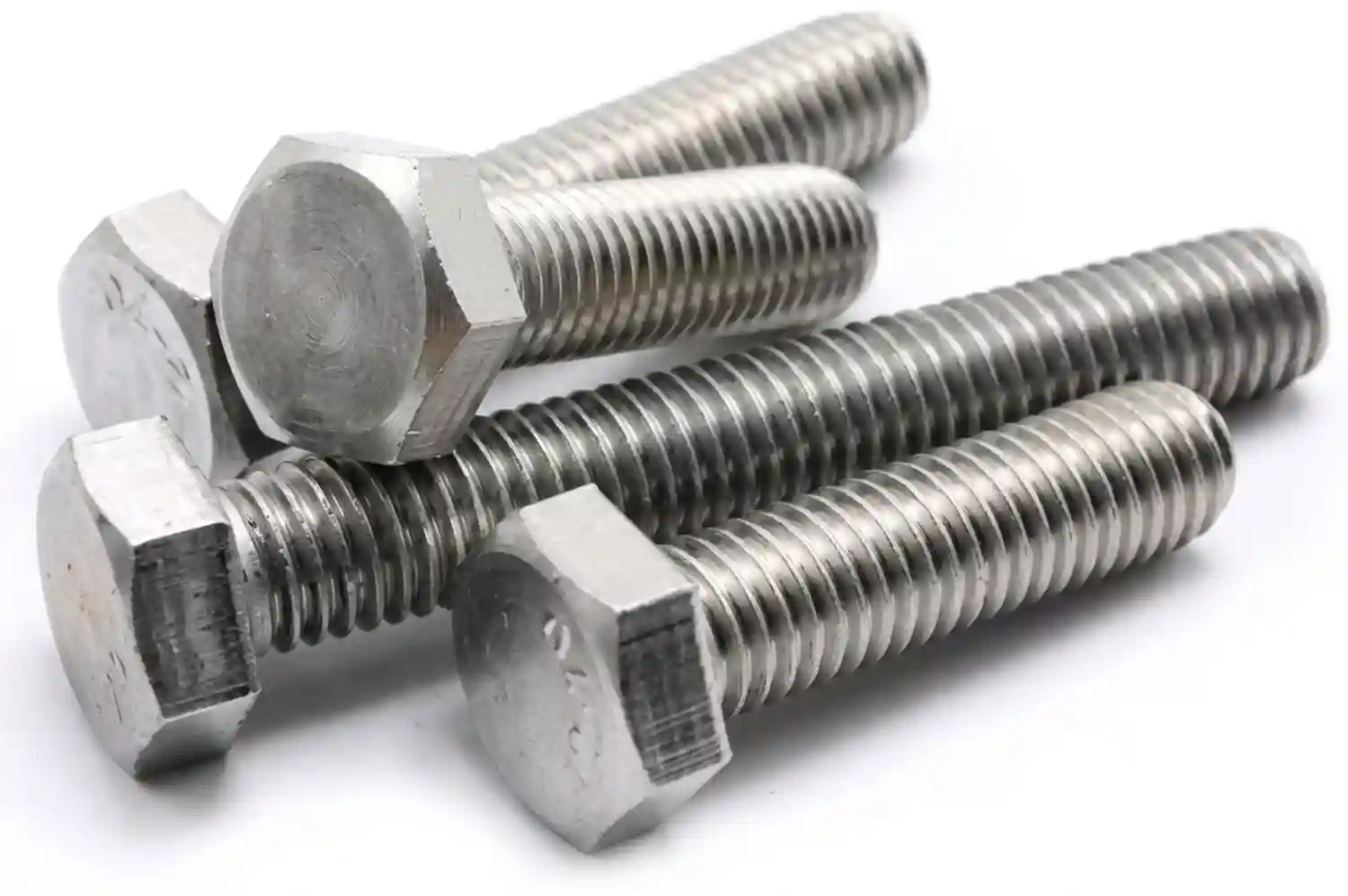

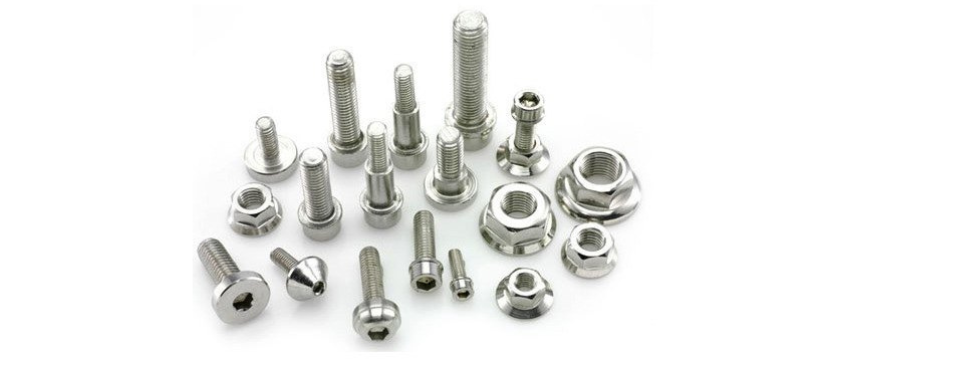

Nickel Alloy Fasteners offer excellent strength, corrosion resistance, and durability in demanding chemical, petrochemical, marine, and high-temperature industrial applications.

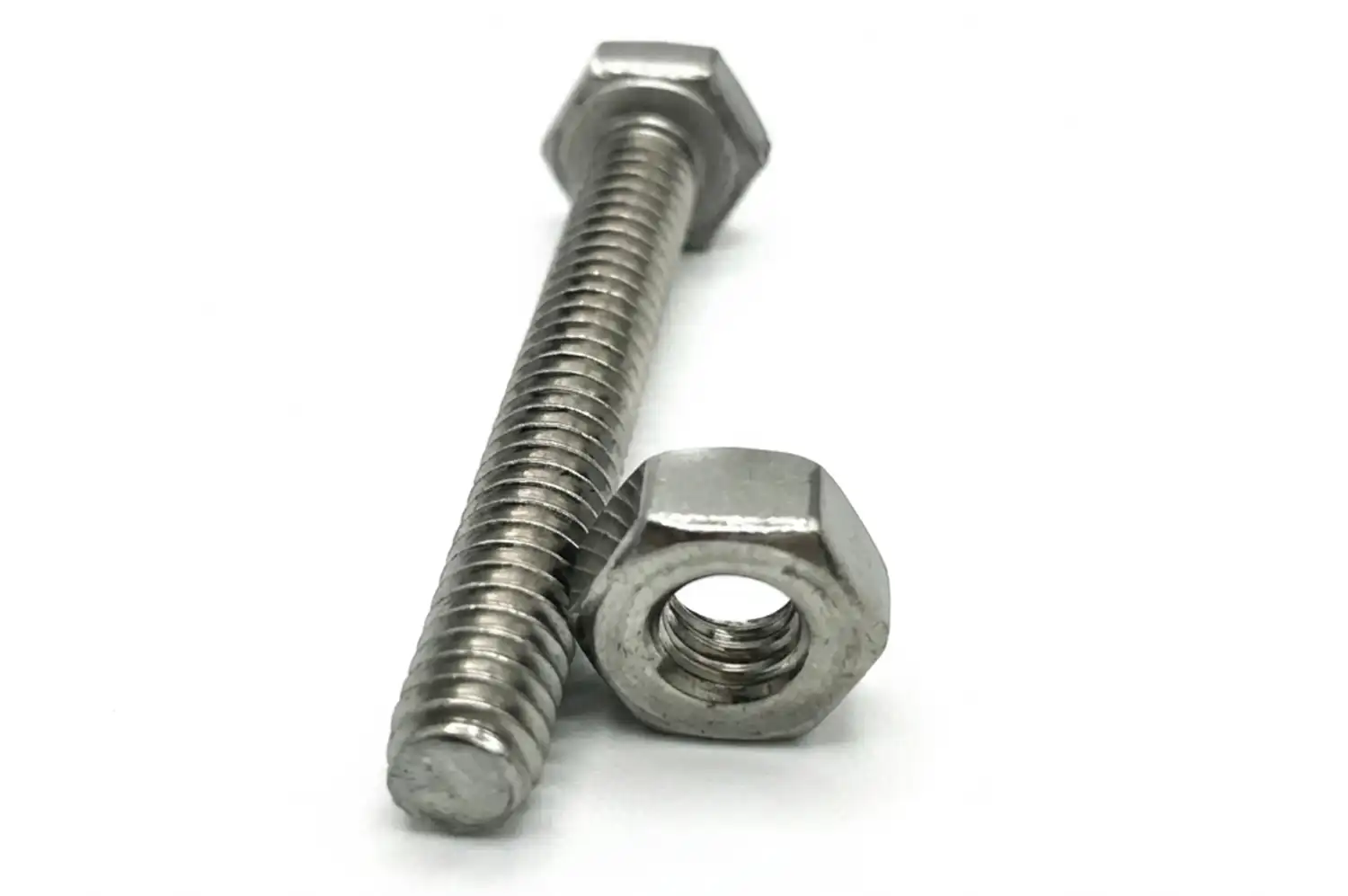

Monel Fasteners offer excellent corrosion resistance, high strength, and durability in marine, chemical, oil & gas, and other demanding industrial environments.

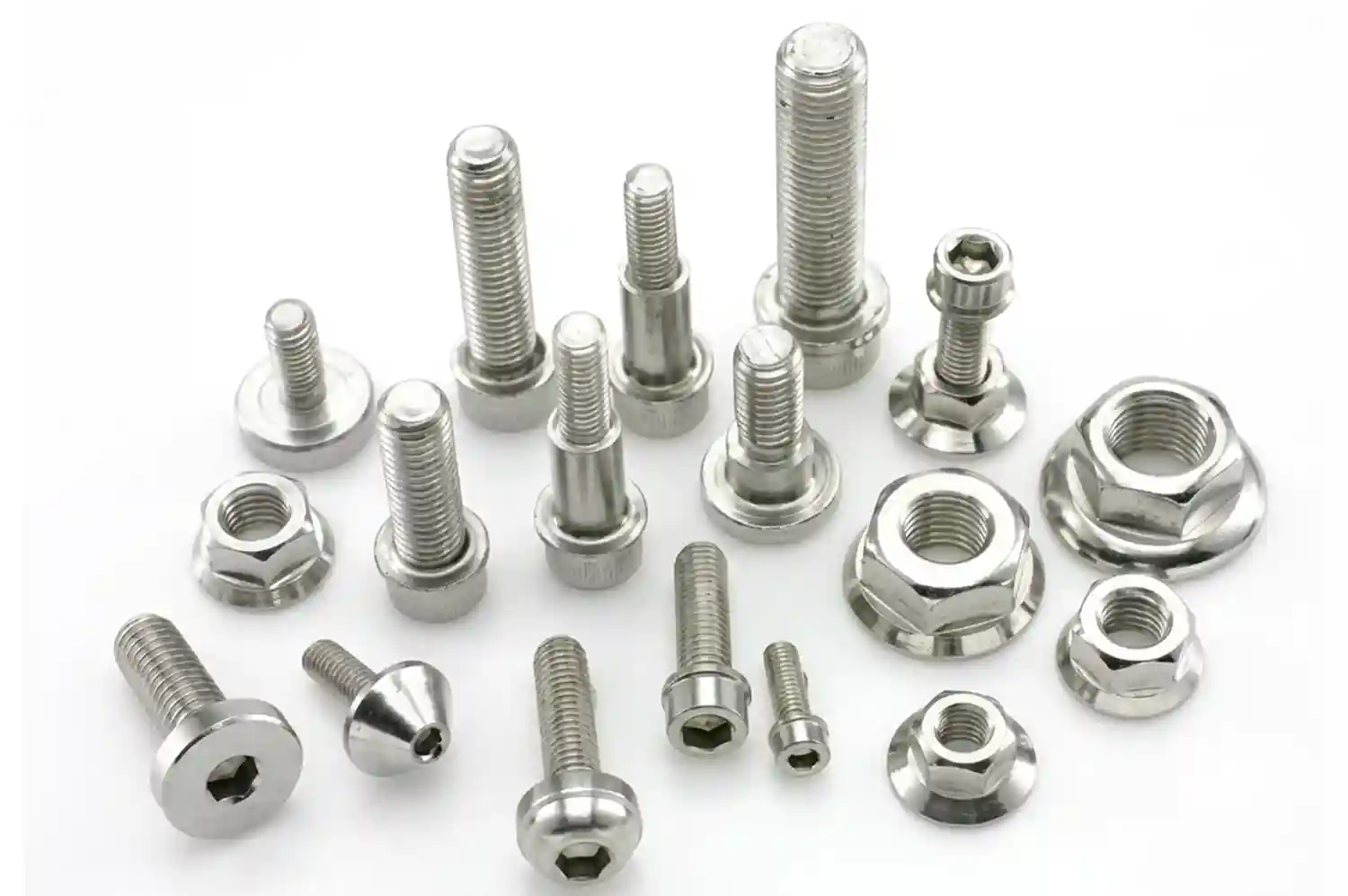

Titanium Fasteners offer excellent strength-to-weight ratio, corrosion resistance, and durability in demanding marine, chemical, aerospace, and high-performance industrial applications.
